Industrial Steel Structure
Fabrication Process
From customer-approved drawings to finished industrial steel structures, we fabricate pipe racks, equipment support structures, steel platforms, module support structures, and other non-standard steel structures for petrochemical, refinery, oil & gas, and energy projects.
- Works from customer-provided drawings
- EN 1090 EXC3 Certified
- 50,000+ tons annual capacity
How We Work
Fabrication Based on
Your Engineering Drawings
Meichen does not provide structural design services as a primary offering. Our role is to receive your approved engineering drawings and deliver precision-fabricated steel structures that conform exactly to your specifications.
We work with EPC contractors, module fabricators, and industrial equipment suppliers who require a reliable manufacturing partner capable of handling complex, non-standard industrial steel structures at scale.
25+
Years in fabrication
50k+
Tons / year capacity
400+
Technical staff
Drawing Review
We review your structural drawings and confirm material, tolerance, and standard requirements.
Material Sourcing
Certified steel procurement from traceable mills matching your specified grades.
CNC Fabrication
Laser cutting, drilling, and automated welding with CNC machines.
QC & Inspection
Multi-stage inspection including dimensional check, NDT, and third-party witness.
Customer Requirements
What We Need From You to Begin
To provide an accurate quotation and begin fabrication preparation, please provide the following documentation and information.
Not ready yet? Send us your preliminary drawings or scope description. Our engineering team will review and advise on what additional information is needed before formal quotation.
Structural Drawings
- Approved structural drawings (GA, detail, assembly)
- Section sizes, connection details, weld symbols
- BOM / material takeoff list
Material Specifications
- Steel grade (e.g. ASTM A36, EN S355, Q355)
- Surface treatment requirements
- Coating system or hot-dip galvanizing spec
Fabrication Standard
- Applicable standard (AISC, EN 1090, GB, AWS D1.1)
- Execution class (e.g. EXC2, EXC3)
- Weld inspection level and NDT requirements
Project Scope & Schedule
- Total steel tonnage estimate
- Required delivery date / phased schedule
- Port of delivery or incoterms
Quality & Inspection Plan
- ITP (Inspection and Test Plan) if available
- Third-party inspector requirements
- Traceability and documentation requirements
Special Requirements
- Corrosive or hazardous environment specs
- PWHT or special welding procedure requirements
- Packing, marking, and shipping instructions
Fabrication Workflow
10-Step Fabrication Process
Every project follows this structured workflow -- from drawing review to final delivery -- ensuring consistent quality and schedule control.
Drawing Review & Technical Confirmation
Pre-ProductionOur engineering team reviews your structural drawings, checks for completeness, identifies ambiguities, and submits RFIs if clarification is required. Material grades, weld symbols, tolerances, and applicable standards are confirmed before production planning begins.

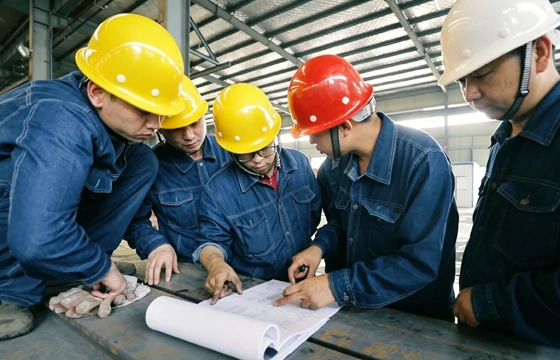

Production Planning & Scheduling
Pre-ProductionA detailed production plan is developed based on your delivery schedule. Work packages are broken down by structure type, material batch, and assembly sequence. Production milestones are set and shared with the customer.

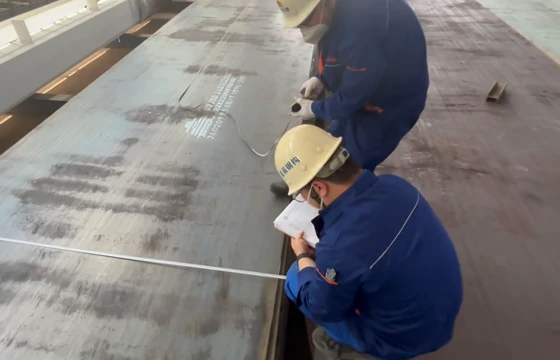

Material Procurement & Incoming Inspection
MaterialSteel is procured from certified mills according to specified grades (e.g. Q355, ASTM A36, EN S355). Mill test certificates (MTCs) are verified. Incoming materials are inspected for dimensions, surface condition, and heat number traceability.

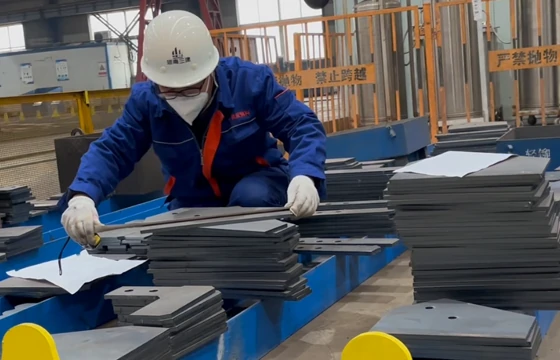

CNC Cutting & Marking
FabricationPlates and sections are cut using laser cutting machines and CNC plasma/flame cutting equipment. Each piece is marked with part numbers, heat numbers, and drawing references for full traceability throughout the production process.
Drilling, Punching & Edge Preparation
FabricationBolt holes are drilled to specified tolerances. Weld joint edges are prepared by grinding, beveling, or machining as required by the welding procedure specification (WPS). Dimensional checks are performed at this stage.

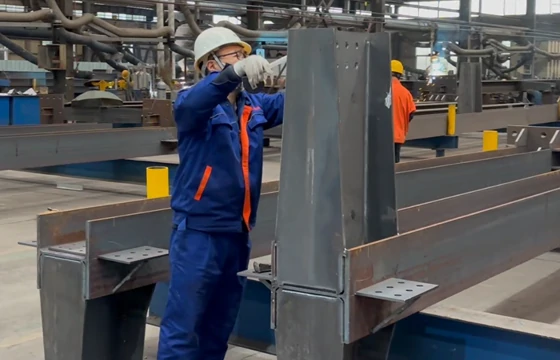

Assembly & Fit-Up
FabricationComponents are assembled on jigs and fixtures to maintain dimensional accuracy. Fit-up is checked against drawings before welding begins. Tack welding is performed by qualified welders according to the approved WPS.
Welding
FabricationWelding is performed by certified welders using qualified welding procedures. Automated welding systems are used where applicable for consistent quality. Weld parameters, sequence, and interpass temperatures are controlled and recorded.

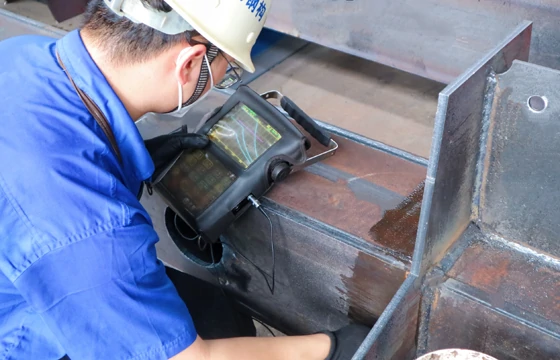

Dimensional Inspection & NDT
InspectionCompleted assemblies are dimensionally inspected against drawing tolerances. Non-destructive testing (NDT) including ultrasonic testing (UT), magnetic particle testing (MT), or radiographic testing (RT) is performed per the ITP and applicable standards.
Surface Treatment & Coating
FinishingStructures are shot blasted to SA 2.5 standard. Primer and topcoats are applied according to the specified coating system. Film thickness is measured and recorded. Hot-dip galvanizing is available as an alternative where specified.

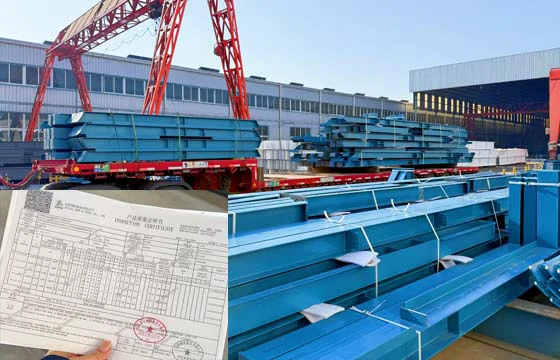

Final Inspection, Documentation & Shipping
DeliveryA final inspection is conducted -- including dimensional check, coating inspection, and documentation review. Quality records including MTCs, weld records, NDT reports, and inspection certificates are compiled and issued. Structures are packed and shipped per agreed incoterms.
Quality Assurance
Quality Control Throughout
the Fabrication Process
Quality is integrated at every stage of production -- not just final inspection. Our QC system meets the requirements of international EPC contractors and third-party inspection agencies.
Certifications & Standards
Product Scope
Structures We Fabricate
We specialize in heavy, complex industrial steel structures for petrochemical, refining, and energy projects. All types below are fabricated from customer-provided drawings.
Steel Equipment Platforms
Custom steel equipment platforms for petrochemical, refinery, oil & gas, chemical, and industrial facility applications.
View Details
Pipe Rack Structures
Custom steel pipe rack structures for petrochemical, refinery, oil & gas, chemical, and heavy industrial projects.
View Details
Module Support Structures
Custom steel module support structures for modular plant systems, packaged units, process skids, and industrial projects.
View Details
Industrial Pipe Bridges
Custom steel pipe bridge structures for refinery, petrochemical, chemical, and heavy industrial piping systems.
View Details
Steel Truss Structures
Custom steel truss structures for industrial buildings, process facilities, pipe support systems, and heavy-duty project applications.
View Details
Equipment Support Structures
Custom steel equipment support structures for petrochemical, refinery, oil & gas, chemical, and heavy industrial projects.
View DetailsProject References
Related Fabrication Projects
2026
Oil & Gas Modular Steel Structure Fabrication Project
Meichen Steel Structures was contracted by a leading domestic offshore engineering company to provide modular steel structure fabrication services for an overseas oil and gas project. The steel structure modules were fabricated in China and designed to accommodate subsequent equipment installation and piping integration. After completion of module assembly, the integrated units will be transported to the project site in Uzbekistan for installation and commissioning.
2026
Herun Technology 36,000 T/Y Chemical Project
MEICHEN STEEL STRUCTURES provided approximately 700 tons of steel structures for the Herun Technology 36,000 tons/year chemical project located in Luoyang, China. The supplied structures included equipment support structures, steel platforms, pipe rack structures, and industrial steel frames for chemical production facilities. With professional fabrication capabilities, strict quality control, and experience in complex industrial projects, MEICHEN delivered customized steel structure solutions to support the safe and efficient operation of the chemical plant.
2026
Structural Steel Platform for Air-Cooled Auxiliary Machinery
The project involved the fabrication of a 900-ton steel structure specifically designed for air-cooled auxiliary equipment in a petrochemical facility. The structure was intended to support heavy fans, pumps, and auxiliary machinery. Meichen Steel Structures Co., Ltd. was responsible for the complete scope, including design, fabrication, and delivery of the structural steel framework. This steel structure provides reliable support for the equipment while ensuring long-term safety and stability under operational vibrations and environmental loads.
FAQ
Frequently Asked Questions
Common questions from EPC contractors and industrial project teams about our fabrication services, capabilities, and processes.
Do you provide structural design services?
No. Our core service is fabrication based on customer-provided drawings. We do not offer structural design as a primary service. However, we can provide shop drawing preparation (fabrication drawings) based on your approved structural drawings, and can flag potential fabrication issues during the drawing review stage.
What drawing formats do you accept?
We accept structural drawings in PDF, DWG, DXF, and STEP/IGES formats. Drawings should include general arrangement (GA), detail drawings, connection details, and a bill of materials (BOM). The drawings must be approved by your engineering team before production begins.
Which fabrication standards can you work to?
We are experienced with EN 1090 (EXC2 and EXC3), AISC 360, AWS D1.1, GB 50017, and GB 50205. If your project specifies a different standard, please share it during the inquiry stage and we will confirm applicability.
What is your minimum and maximum order size?
We can accommodate projects from approximately 50 tons upward. Our facility is optimized for medium to large-scale projects in the range of 500-5,000 tons per order. For very small quantities, lead times and unit costs may be less competitive.
Can you support third-party inspection?
Yes. We regularly work with customer-appointed third-party inspectors and international inspection agencies. We agree on an Inspection and Test Plan (ITP) at project start and respect all hold and witness points. Our facility is open to inspector access throughout the production process.
What surface treatment options are available?
Standard surface treatment is shot blasting to SA 2.5 followed by primer and topcoat application per your specified coating system. Hot-dip galvanizing is also available. We can apply epoxy, polyurethane, and other industrial coating systems as specified.
What is a typical lead time for fabrication?
Lead time depends on project complexity and tonnage. For a typical project of 500-1,000 tons, fabrication lead time is approximately 8-14 weeks after drawing confirmation and material procurement. We provide a detailed production schedule at the quotation stage.
Do you handle shipping and export?
Yes. We can arrange export packing, marking, and shipping under FOB, CFR, or CIF terms. We have experience exporting to the Middle East, Southeast Asia, Central Asia, and Europe. All export documentation including packing lists, material certificates, and inspection reports are provided.
Submit Your Drawings
Ready to Fabricate?
Send Us Your Drawings.
Share your structural drawings and project requirements. Our engineering team will review them and provide a detailed fabrication quotation within 3–5 business days.
- Free drawing review and technical feedback
- Detailed quotation with schedule
- EN 1090 EXC3 certified fabrication
- Third-party inspection supported
50k+
Tons/year
70k+
sqm facility
25+
Years exp.
Submit Your Project Drawings
Attach your drawings via email or describe your project below — we'll get back to you with a detailed quotation.
